PAUWERPARTS TOORTSONDERDELEN TIG Type 17, 18, 26
LET OP: Niet elk onderdeel past overal op! Raadpleeg de PDF om zeker te zijn van het juist onderdeel!
Filter
45 van de 45 zichtbaar.

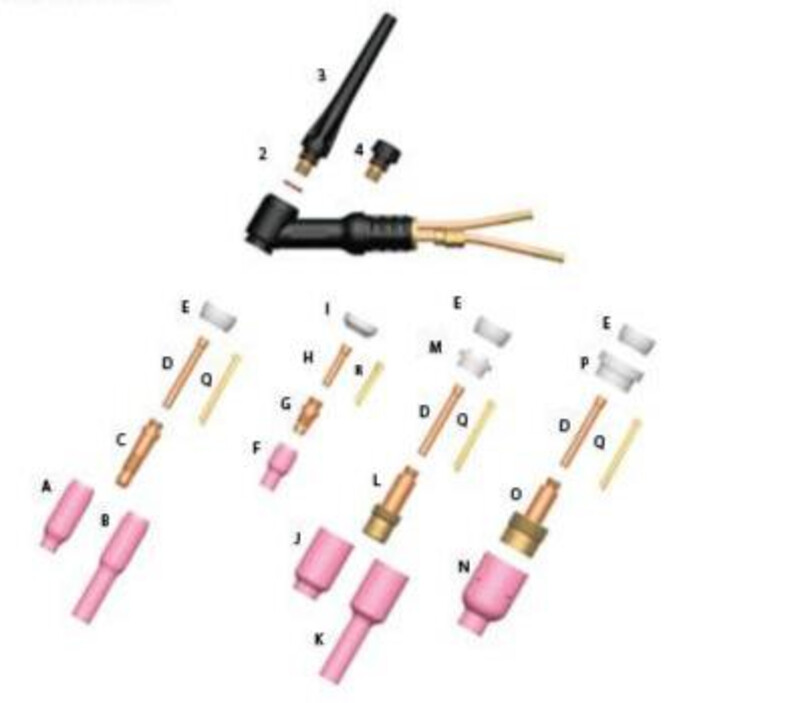

Productcode | Omschrijving | Type | Nummer | Vorm | ||
---|---|---|---|---|---|---|

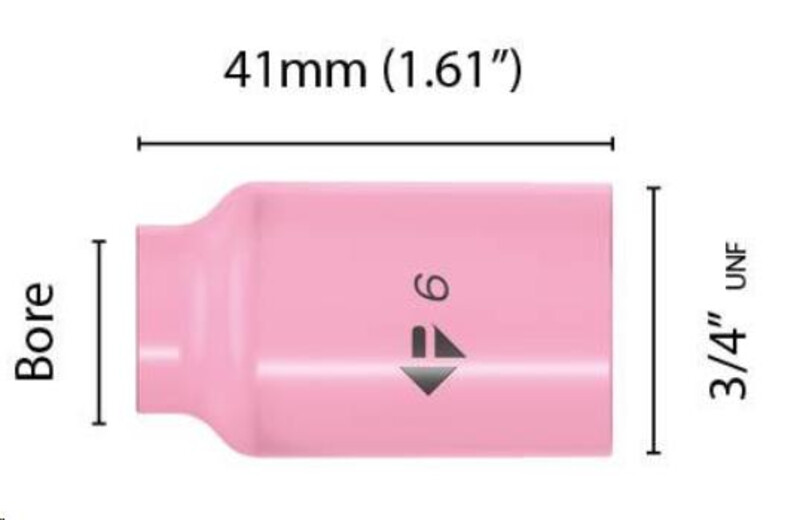

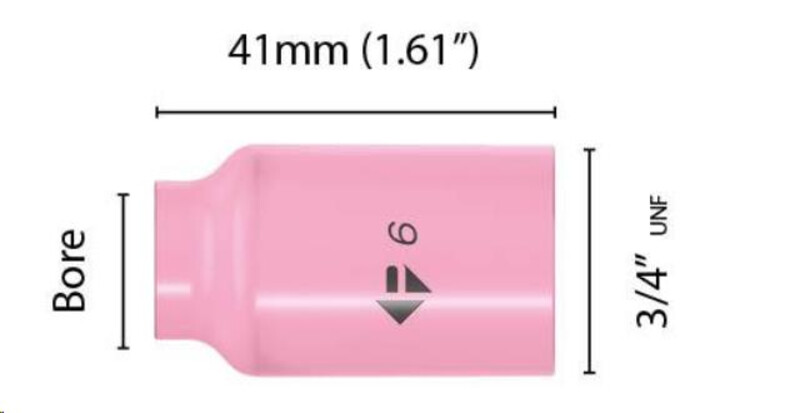

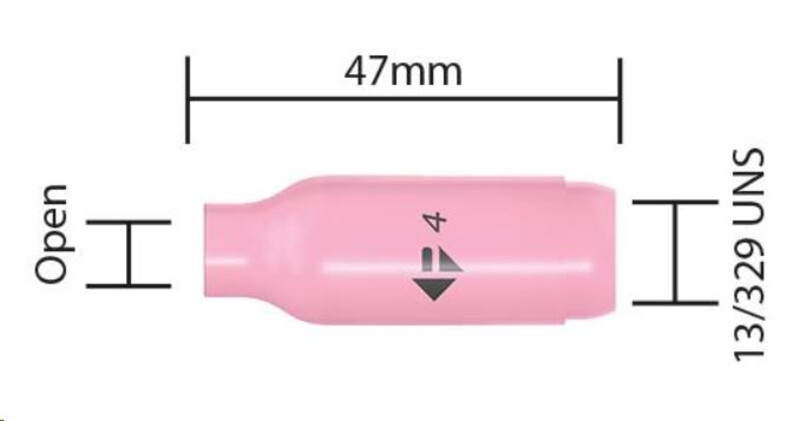

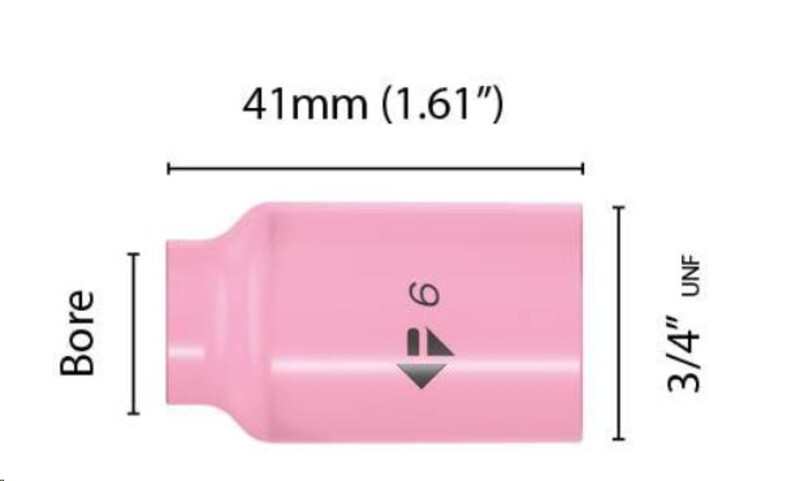

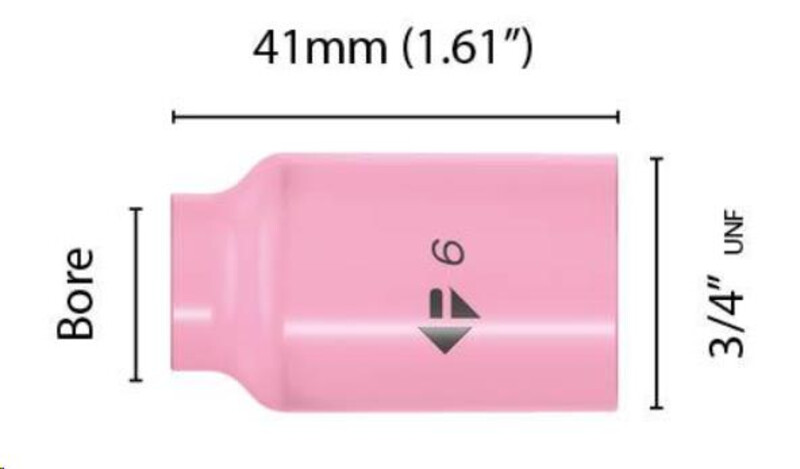

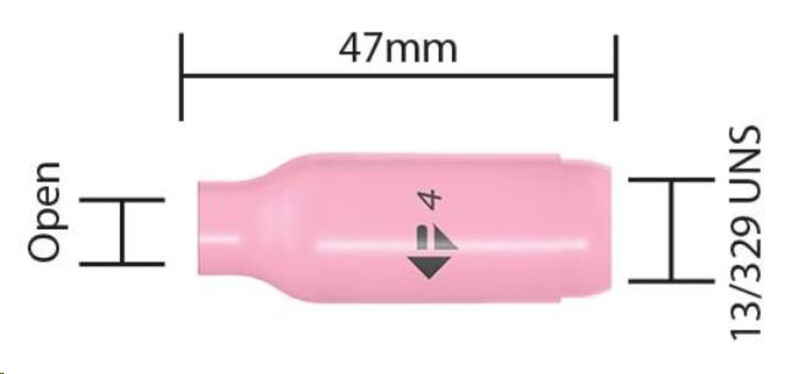

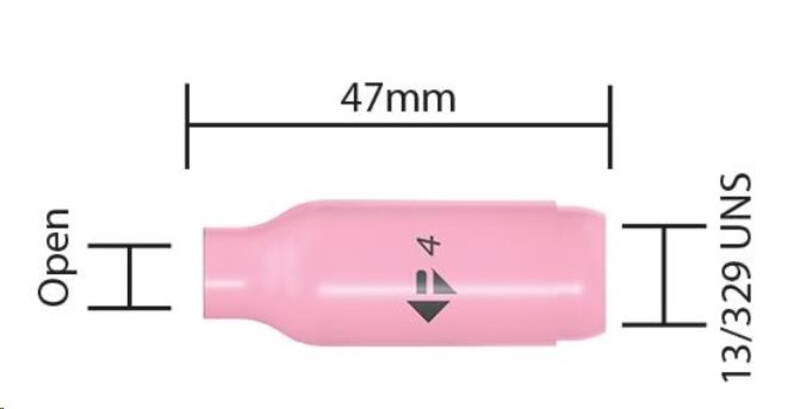

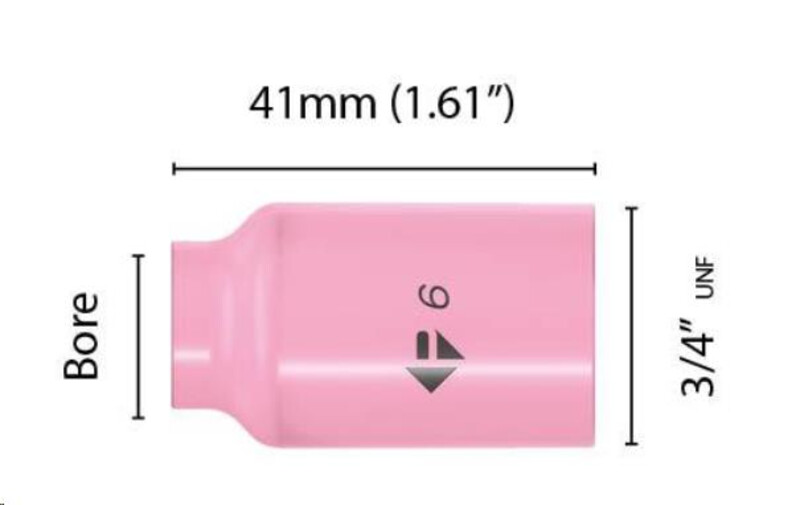

P000007693 | Crm.gascup | 17, 18, 26 | 15 | standaard-nr.10 | ||
P000007692 | Crm.gascup | 17, 18, 26 | 15 | standaard-nr.12 | ||

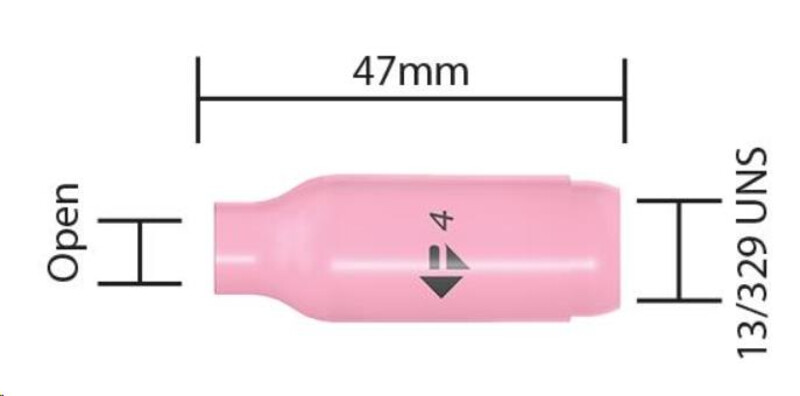

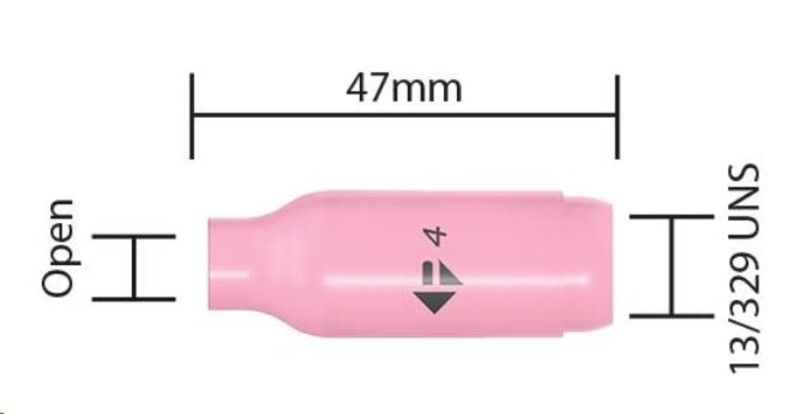

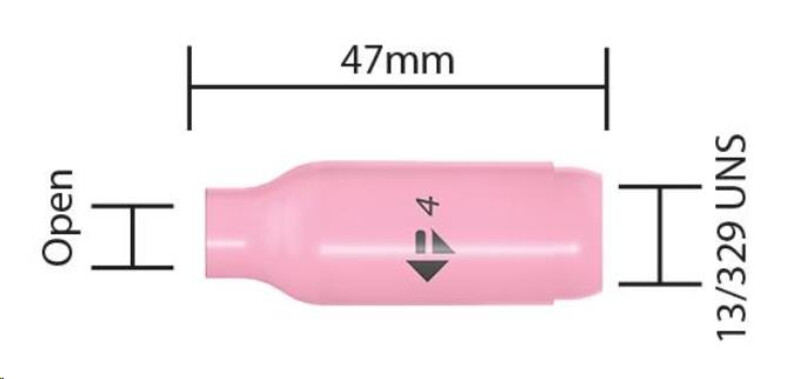

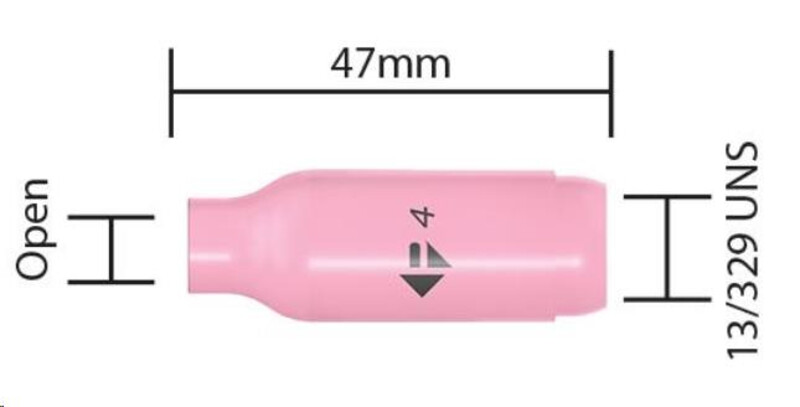

P000007701 | Crm.gascup | 17, 18, 26 | 15 | standaard-nr.4 | ||
P000007699 | Crm.gascup | 17, 18, 26 | 15 | standaard-nr.5 | ||
P000007697 | Crm.gascup | 17, 18, 26 | 15 | standaard-nr.6 | ||
P000007695 | Crm.gascup | 17, 18, 26 | 15 | standaard-nr.7 | ||
P000007694 | Crm.gascup | 17, 18, 26 | 15 | standaard-nr.8 | ||

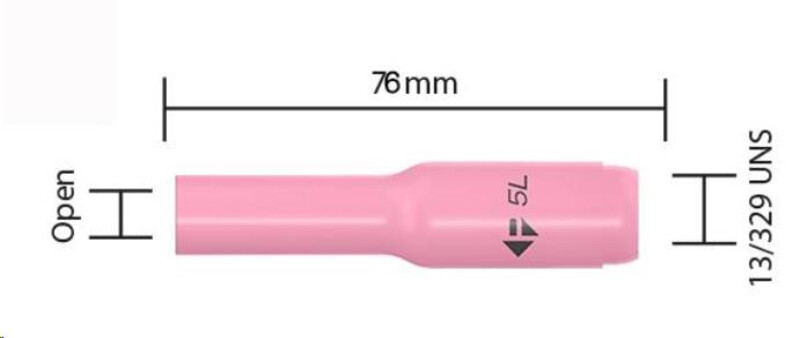

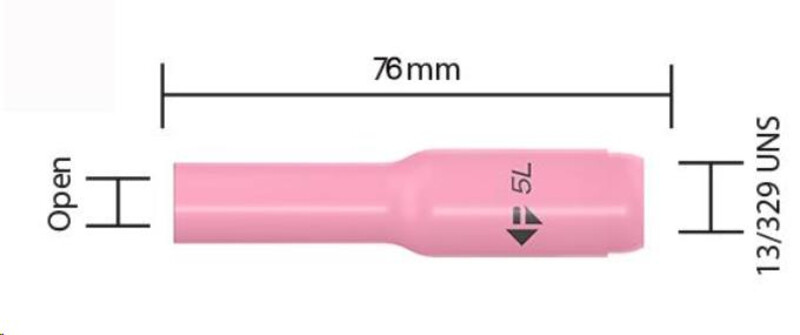

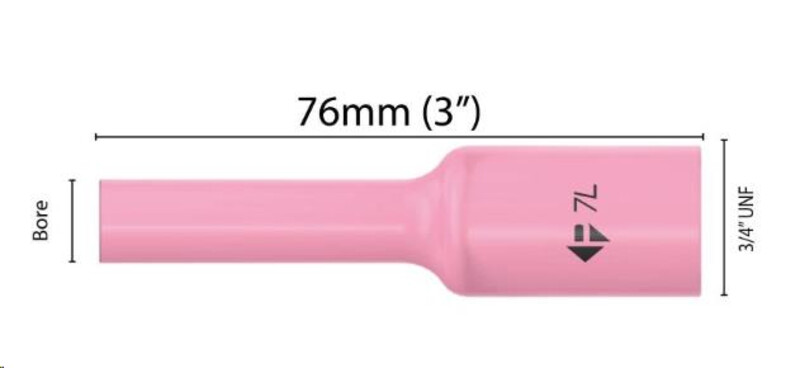

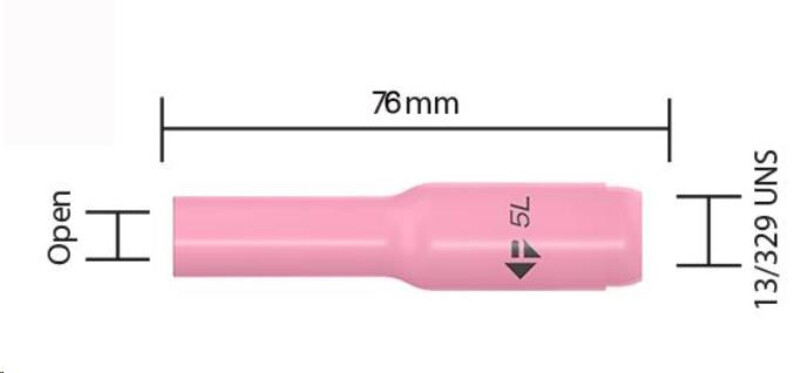

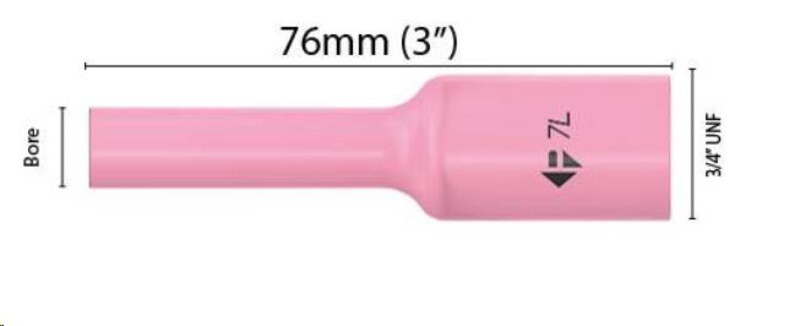

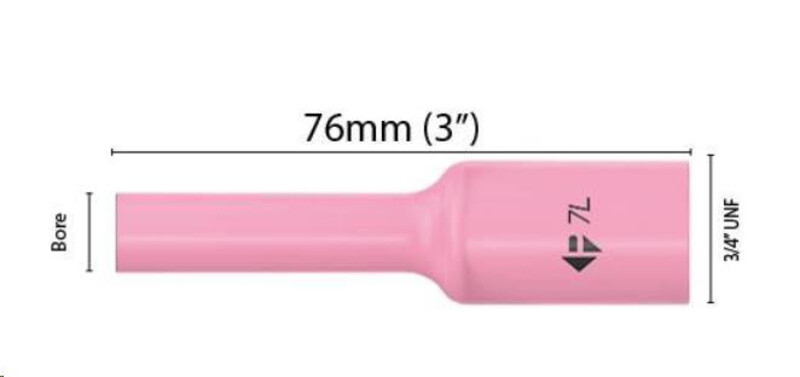

P000007700 | Crm.gascup | 17, 18, 26 | 16 | stand.ex.lang-nr5 | ||
P000007698 | Crm.gascup | 17, 18, 26 | 16 | stand.ex.lang-nr6 | ||

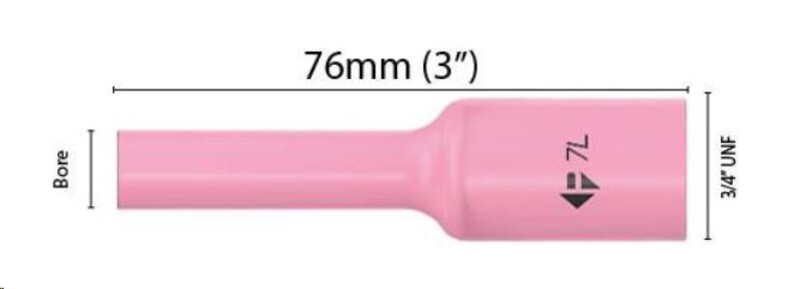

P000007696 | Crm.gascup | 17, 18, 26 | 16 | stand.ex.lang-nr7 | ||

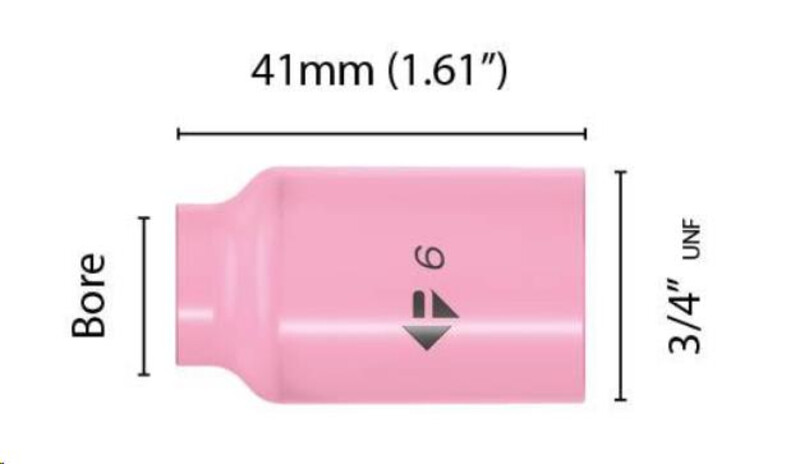

P000007915 | Crm.gaslenscup | 17, 18, 26 | 17 | middel-nr.10 | ||
P000007914 | Crm.gaslenscup | 17, 18, 26 | 17 | middel-nr.4 | ||
P000007912 | Crm.gaslenscup | 17, 18, 26 | 17 | middel-nr.5 | ||
P000007910 | Crm.gaslenscup | 17, 18, 26 | 17 | middel-nr.6 | ||
P000007908 | Crm.gaslenscup | 17, 18, 26 | 17 | middel-nr.7 | ||
P000007906 | Crm.gaslenscup | 17, 18, 26 | 17 | middel-nr.8 | ||
P000007913 | Crm.gaslenscup | 17, 18, 26 | 18 | middel-lang-nr.-5 | ||
P000007911 | Crm.gaslenscup | 17, 18, 26 | 18 | middel-lang-nr.-6 | ||
P000007909 | Crm.gaslenscup | 17, 18, 26 | 18 | middel-lang-nr.-7 | ||
P000007907 | Crm.gaslenscup | 17, 18, 26 | 18 | middel-lang-nr.-8 | ||

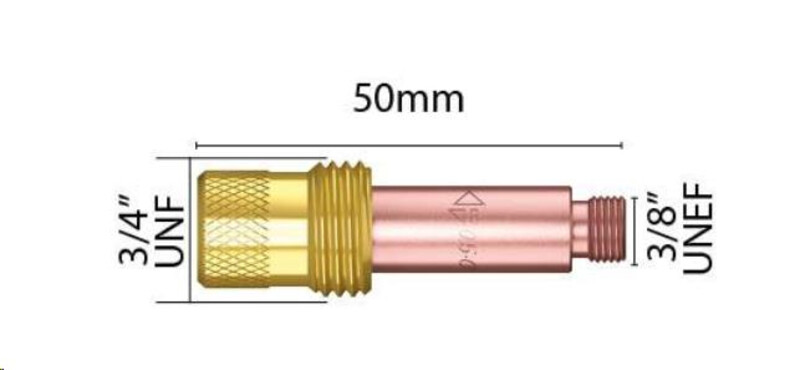

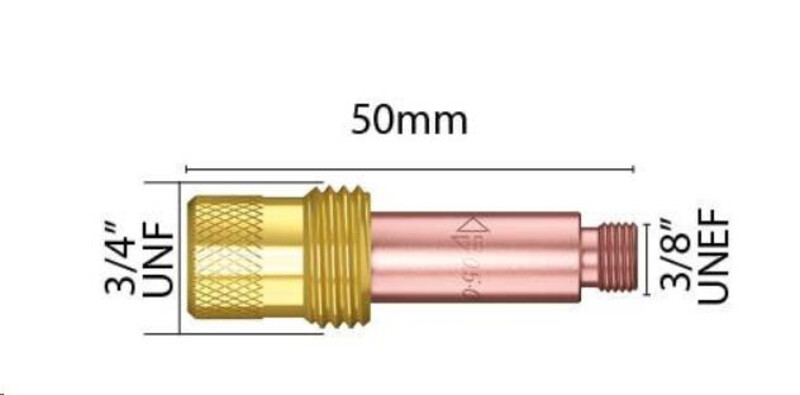

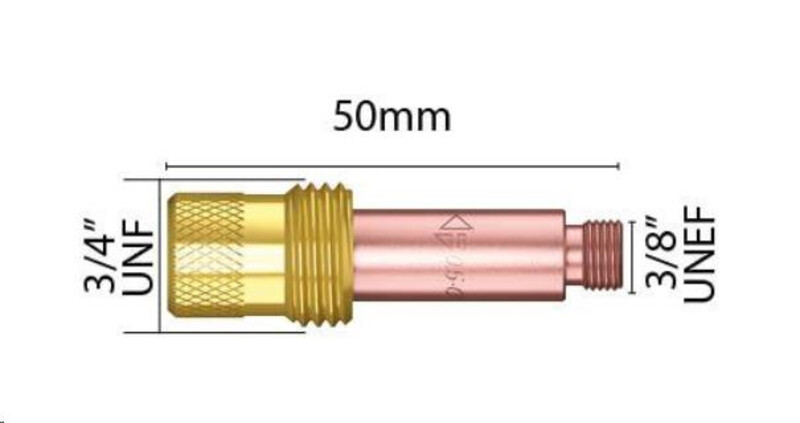

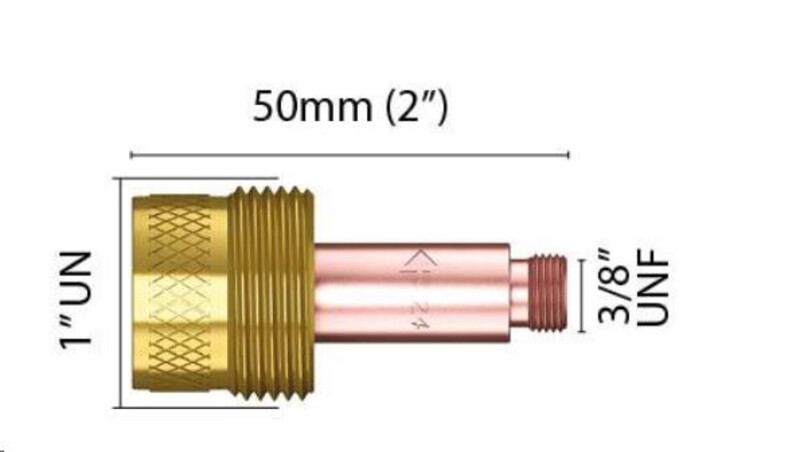

P000007849 | Gaslens | 17, 18, 26 | 13 | middel-1.6-mm | ||
P000007851 | Gaslens | 17, 18, 26 | 13 | middel-2.4-mm | ||
P000007852 | Gaslens | 17, 18, 26 | 13 | middel-3.2-mm | ||

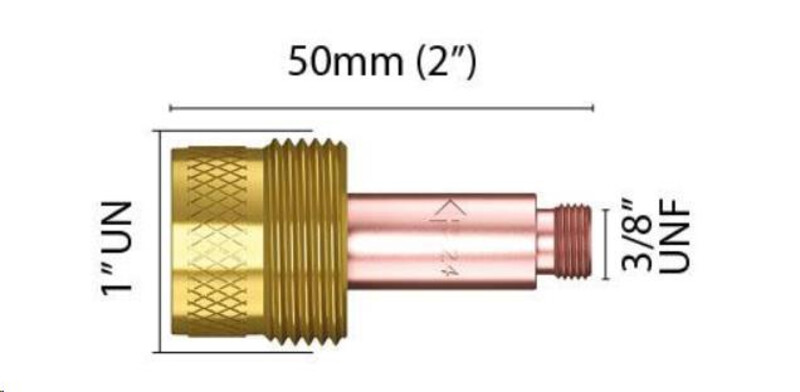

P000007846 | Gaslens | 17, 18, 26 | 14 | groot-1.6-mm | ||
P000007863 | Gaslens | 17, 18, 26 | 14 | groot-2.4-mm | ||
P000008028 | Gaslens | 17, 18, 26 | 14 | groot-3.2-mm | ||

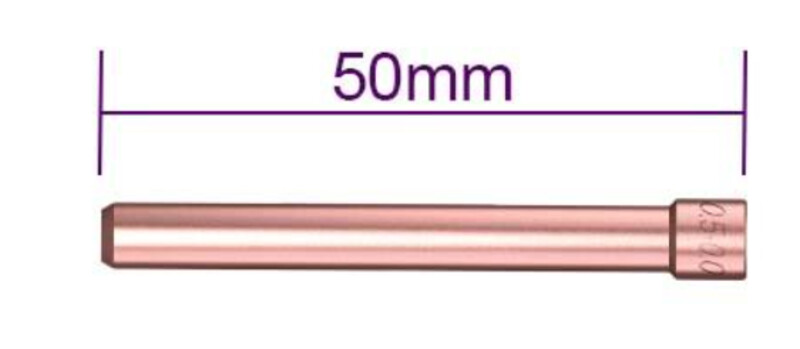

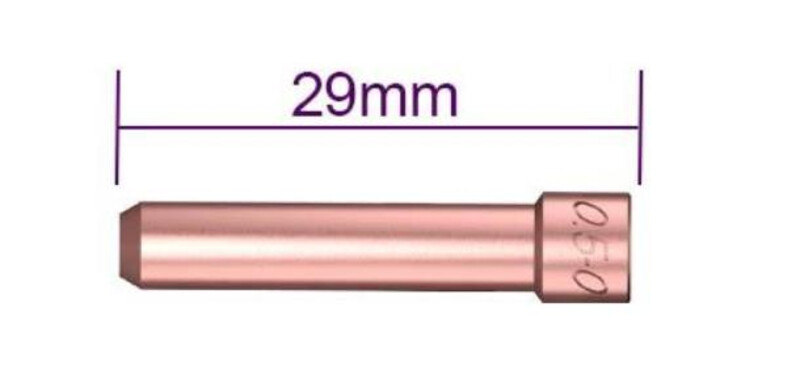

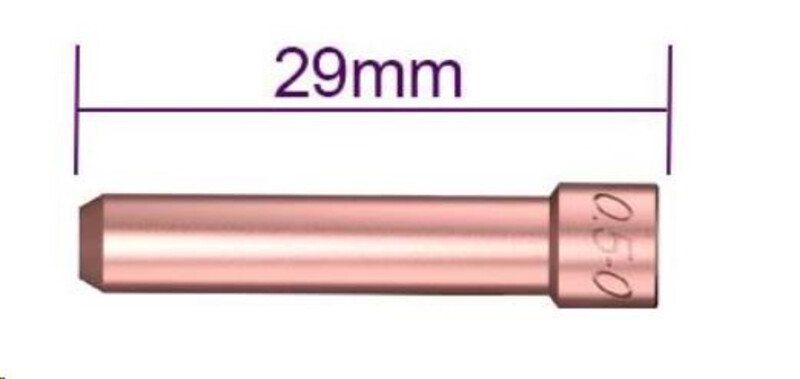

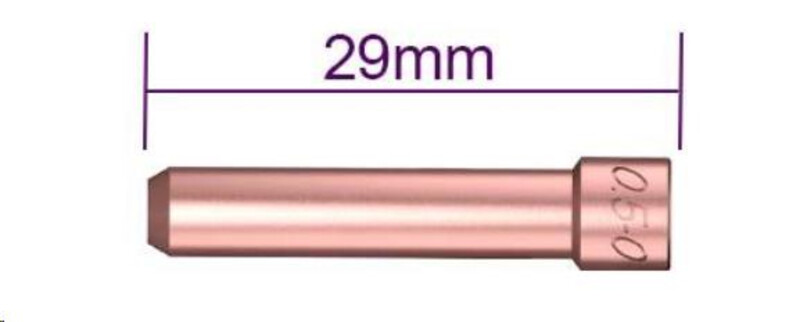

P000007684 | Spantang | 17, 18, 26 | 10 | klein-3.2-mm | ||
P000007679 | Spantang | 17. 18. 26 | 10 | klein-1.6-mm | ||
P000007681 | Spantang | 17. 18. 26 | 10 | klein-2.4-mm | ||

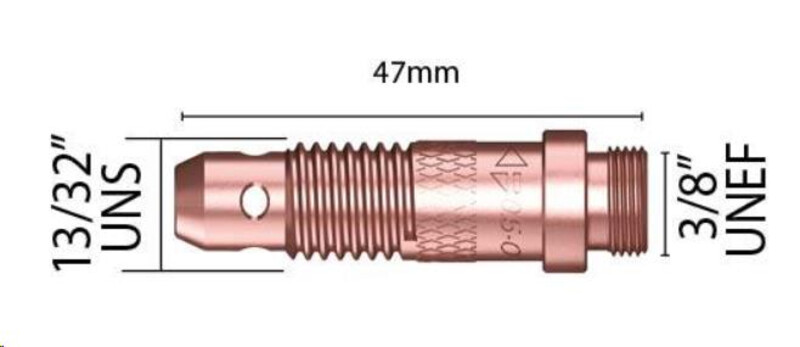

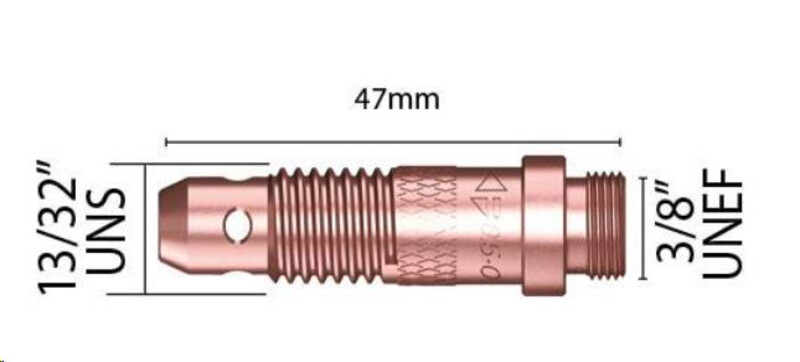

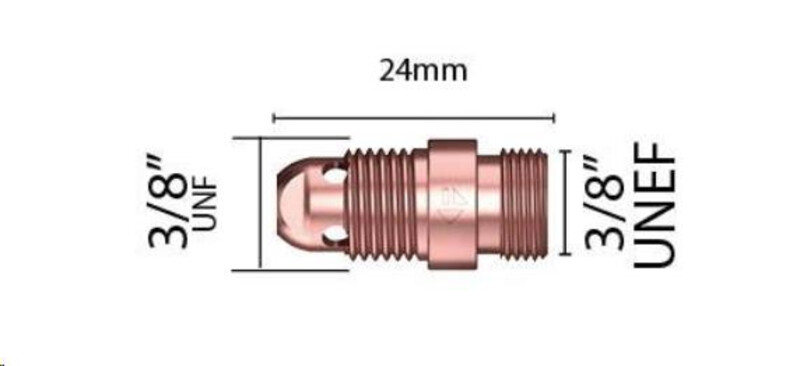

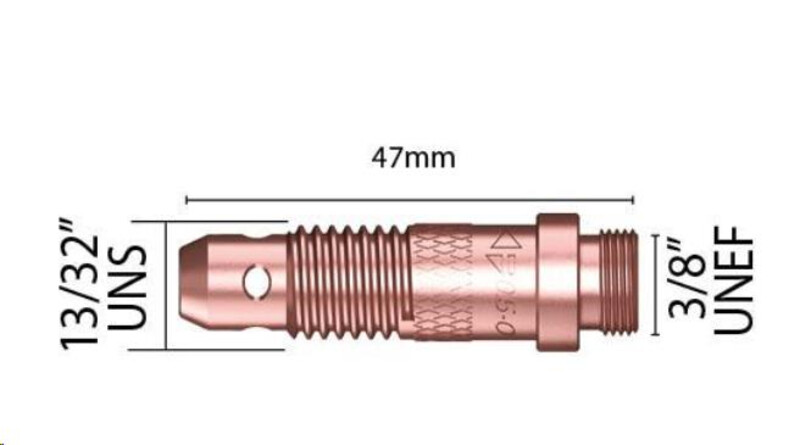

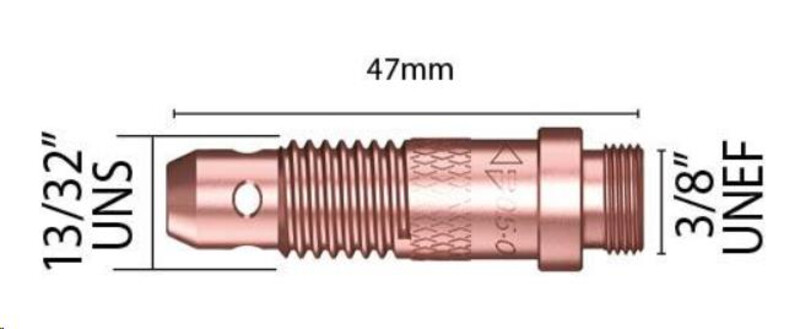

P000007689 | Spantanghouder | 17, 18, 26 | 11 | standaard-1.6-mm | ||
P000007691 | Spantanghouder | 17, 18, 26 | 11 | standaard-2.4-mm | ||
P000007686 | Spantanghouder | 17, 18, 26 | 11 | standaard-3.2-mm | ||
P000007766 | Spantanghouder | 17, 18, 26 | 12 | Klein stubby | ||

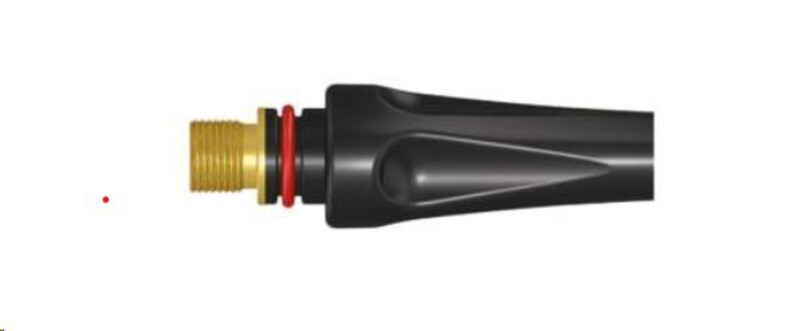

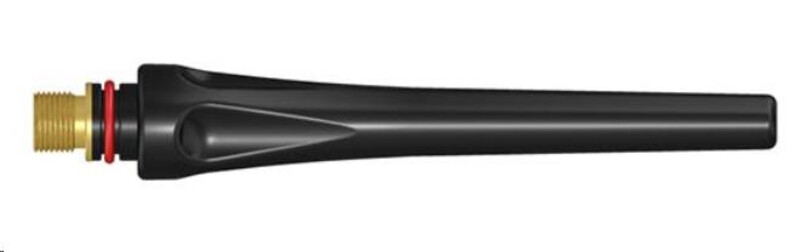

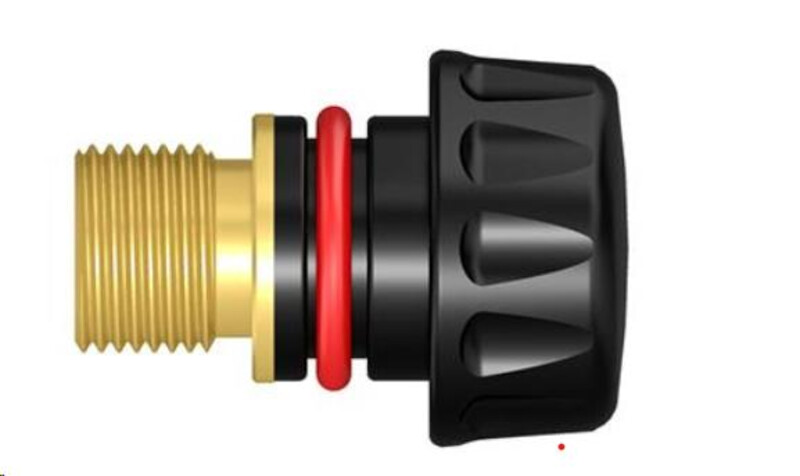

P000007943 | Toortskap | 17, 18, 26 | 5 | Kort | ||
P000007816 | Toortskap | 17, 18, 26 | 6 | Middelgrote | ||
P000007940 | Toortskap | 17, 18, 26 | 7 | Lange | ||
P000008026 | Toortskap | 17, 18, 26 | 8 | Dichting | ||

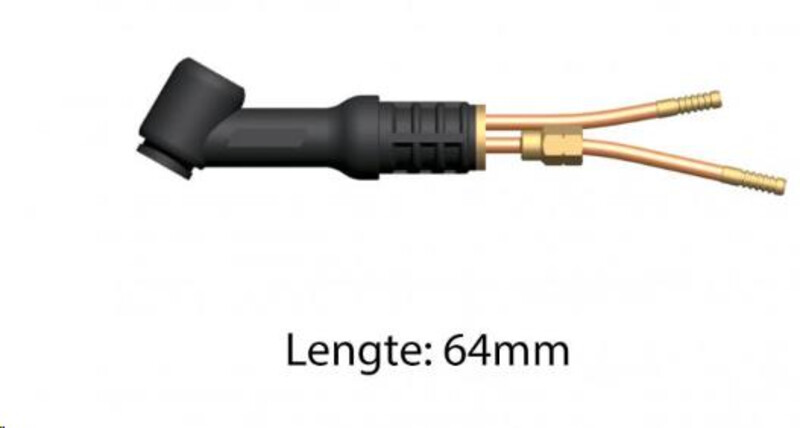

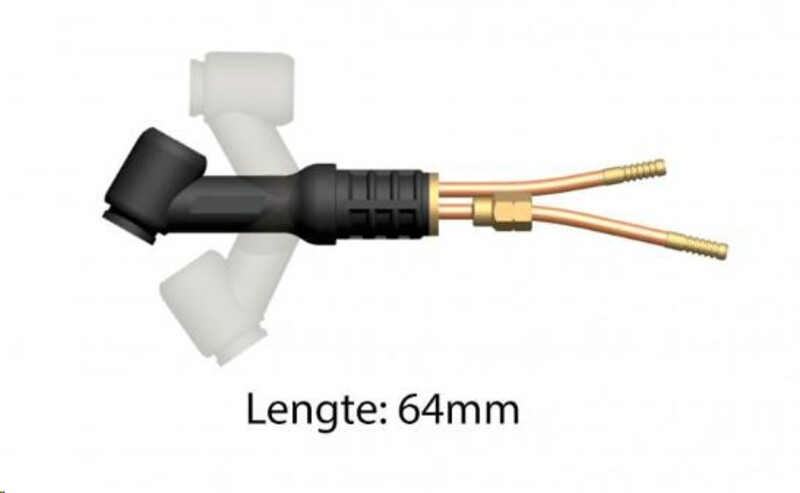

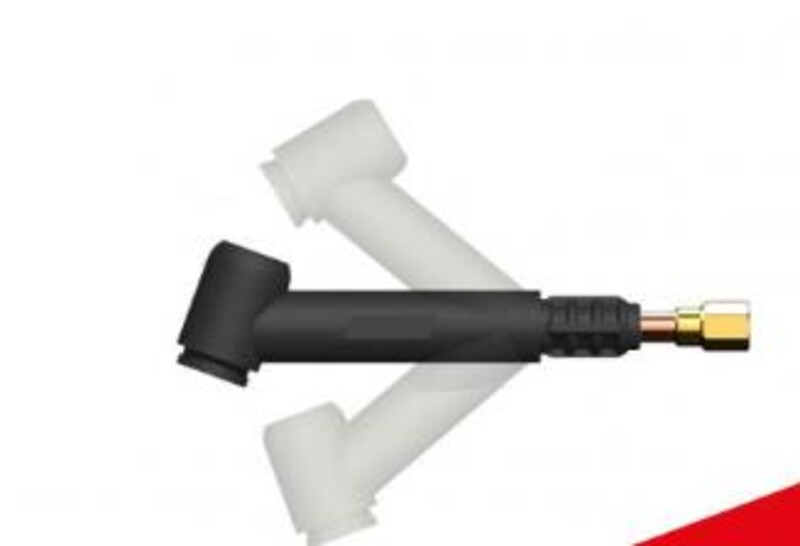

P000008131 | Toortslichaam | 17 | 1 | vast | ||

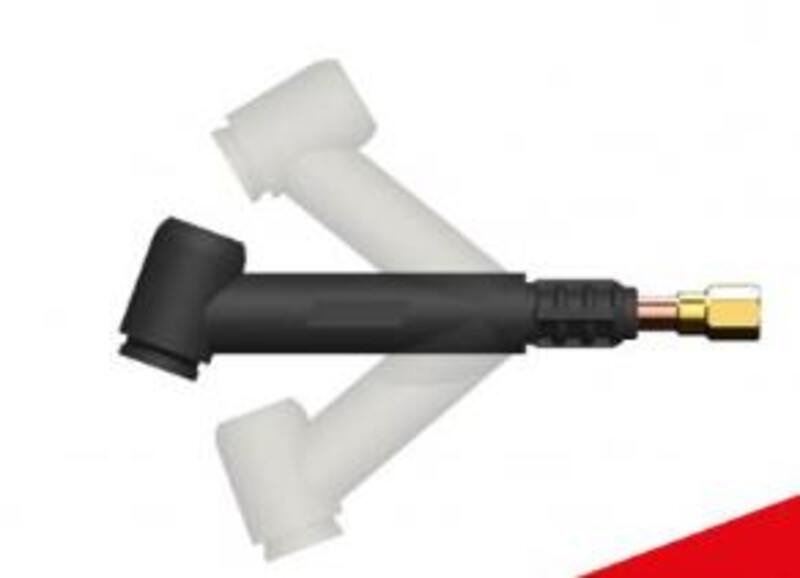

P000008137 | Toortslichaam | 17 | 2 | Flexibel | ||
P000008152 | Toortslichaam | 18 | 1 | vast | ||
P000008158 | Toortslichaam | 18 | 2 | Flexibel | ||
P000008219 | Toortslichaam | 26 | 1 | vast | ||
P000008224 | Toortslichaam | 26 | 2 | Flexibel | ||
P000008229 | Toortslichaam | 26 | 3 | Flexibel met kraan | ||
P000008235 | Toortslichaam | 26 | 4 | Vast met kraan |
Naam | Link |
---|---|
zz900207102.pdf | zz900207102.pdf (PDF - 1.1 MB) |
